Choosing the right construction camera in 2026 means more than picking a resolution — it means choosing a system built for the realities of a jobsite: dust, vibration, theft risk, remote access, and months of continuous operation. TrueLook has built its entire product line around these demands, offering cameras from compact fixed units to full mobile surveillance trailers, all running on a unified cloud platform.
This guide breaks down every TrueLook camera by use case so you can match the right hardware to your project.
Quick answer: For most general contractors, the TrueLook 4K IR Fixed Camera delivers the right balance of resolution, durability, and time-lapse capability. High-profile projects like stadiums or skyscrapers should look at the 8K IR Fixed Camera for cinema-grade documentation.
Table of Contents
- What Makes a Construction Camera Different
- TrueLook Camera Lineup Overview
- Fixed-Position Cameras
- Pan-Tilt-Zoom (PTZ) Cameras
- Interior Cameras
- Mobile Surveillance Trailers
- TrueLook Platform Features
- Choosing the Right TrueLook Camera
- Pricing
- FAQ
What Makes a Construction Camera Different
Standard security cameras are not built for construction environments. Before reviewing TrueLook’s lineup, here are the specs that separate jobsite hardware from consumer-grade alternatives.
Hardware Durability
Weatherproofing Standards
| Rating | Protection Level |
|---|---|
| IP66 | Dust-tight, heavy rain resistant |
| IP67 | Dust-tight, temporary submersion |
| IP68 Our standard | Dust-tight, continuous submersion — TrueLook’s exterior standard |
| IK10 | Highest vandal and impact resistance |
| NEMA 4X | Corrosion resistance for coastal or chemical environments |
TrueLook’s exterior cameras carry IP68 + IK10 + NEMA 4X ratings — a combination that covers virtually every jobsite condition.
Camera Specs
Resolution Requirements by Use Case
| Use Case | Recommended Resolution |
|---|---|
| Site overview and access control | 2K |
| Progress documentation | 4K |
| Marketing, time-lapse, investor reporting | 4K–8K |
| Legal and insurance documentation | 4K minimum Recommended |
| Stadium, infrastructure, landmark projects | 8K |
Connectivity for Remote Sites
TrueLook cameras connect via 4G LTE cellular, which means no Wi-Fi dependency on active sites and no data exposure through shared contractor networks. All footage routes through TrueLook’s cloud platform for remote access from any device.
TrueLook Camera Lineup Overview
TrueLook organizes its 2026 hardware into four categories:
- Fixed-Position Cameras — stationary, wide-angle coverage for documentation and security
- PTZ Cameras — remotely controlled pan-tilt-zoom for active monitoring and panoramic capture
- Interior Cameras — multi-camera for indoor spaces
- Mobile Surveillance Trailers — self-contained, rapidly deployable units for sites without infrastructure
All cameras run on the same TrueLook cloud platform with shared features: live streaming, time-lapse, Intelligent Security with AI-powered motion detection, and integrations with tools like Procore and Autodesk Construction Cloud.

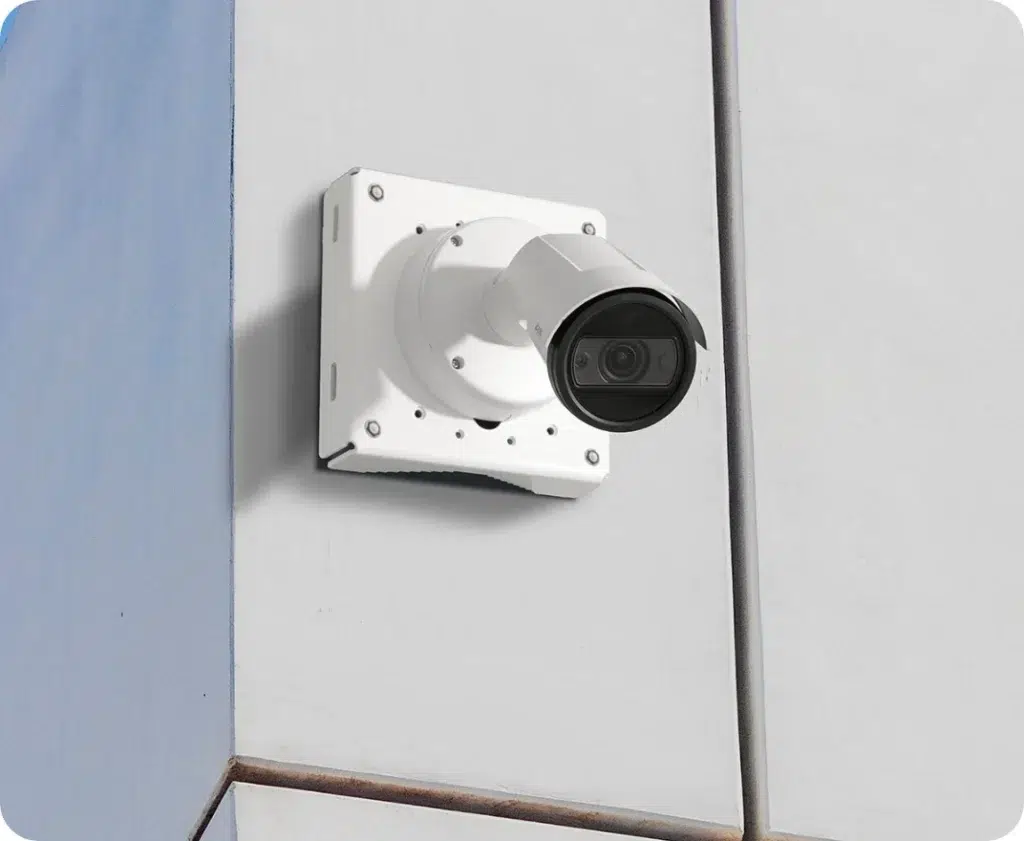

Fixed-Position Cameras
TrueLook 2K IR Fixed Camera — Best Lightweight Option
The 2K IR Fixed Camera is TrueLook’s most compact exterior camera, weighing just over 3 pounds. Its reduced footprint makes it ideal for multi-zone coverage — deploy several units across a large site rather than relying on one camera to cover everything.
Best for: Multi-zone coverage strategies, residential construction, budget-conscious projects, smaller projects, contractors adding supplemental angles to an existing system.
Key specs:
- 2560 × 1440 still resolution (1280 × 720 live stream)
- Built-in infrared
- Ultra-compact — easiest single-person installation in the lineup
- Solar-ready
Why it matters in 2026: Many contractors are moving away from single-camera-per-site setups toward multi-angle coverage that captures every access point and work zone. The 2K IR Fixed Camera is priced and sized for this approach.
TrueLook 4K IR Fixed Camera — Best Overall
The 4K IR Fixed Camera is TrueLook’s flagship fixed unit and the right choice for most commercial and mid-size construction projects. At 3840 × 2160 resolution, it captures enough detail to identify individuals, read signage, and document material deliveries — all from a single mounting position.
The rotatable housing (90° adjustment) accommodates vertical projects like high-rise construction where a standard horizontal field of view misses critical upper-floor work.
Best for: Commercial construction, general contractors requiring documentation and security in a single unit, projects with investor or owner reporting requirements.
Key specs:
- 3840 × 2160 (4K) resolution
- Focal length: 5.9 –13.8mm (varifocal)
- Built-in infrared for complete darkness imaging
- Rotatable 90° for vertical project framing
- IP68 + IK10 + NEMA 4X — TrueLook’s full weatherproofing suite
- Solar-ready with battery backup option

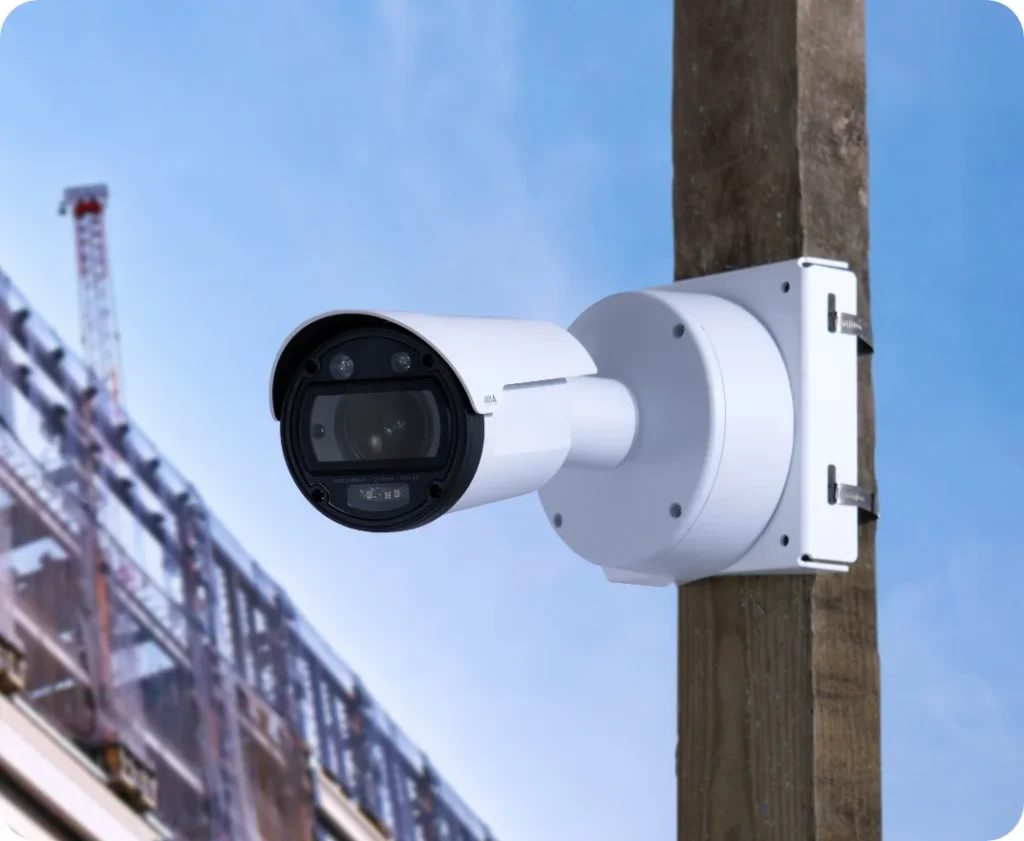

TrueLook 8K IR Fixed Camera — Best for High-Profile Projects
Released in May 2025, the 8K IR Fixed Camera produces imagery at 7680 × 4320, four times the pixel count of a standard 4K camera. For landmark projects like stadiums, airports, urban towers, and infrastructure, this resolution enables cinematic time-lapse documentation and marketing assets that smaller cameras simply cannot produce.
Best for: High-profile commercial, stadium, infrastructure, and civic construction projects where documentation serves both operational and marketing purposes.
Key specs:
- 7680 × 4320 (8K) resolution
- Built-in infrared
- IP68 + IK10 + NEMA 4X
- Designed for multi-year deployments
When to choose it: If your project will produce a time-lapse video for investor relations, public communications, or award submissions, the 8K camera produces footage that holds up at large-format display sizes. For a $50M+ project, the marginal cost of 8K documentation is insignificant relative to its value.
Pan-Tilt-Zoom (PTZ) Cameras
Fixed cameras document what happens in their field of view. PTZ cameras let operators actively follow activity — useful for safety compliance monitoring, remote site supervision, and capturing detailed views of specific work areas on demand.

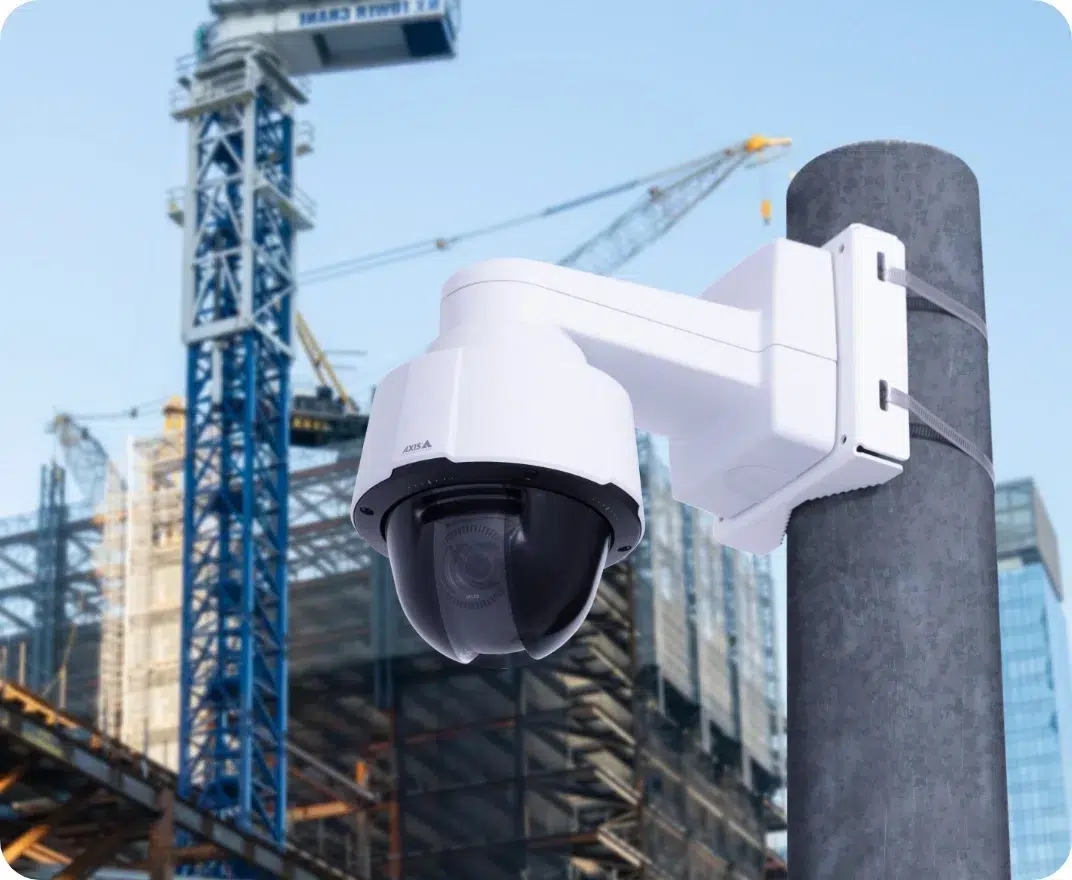

TrueLook 2K IR PTZ Camera
TrueLook’s 2K IR PTZ delivers 30× optical zoom and full 360° horizontal panning via the cloud platform. The temperature-controlled enclosure prevents fogging and thermal shock in climates with extreme temperature swings.
Best for: Active site supervision on mid-size projects, safety monitoring, sites where operators need directional control without upgrading to 4K.
Key specs:
- 2K resolution
- 30× optical zoom
- 360° horizontal pan
- IP66 rating
- Temperature-controlled enclosure

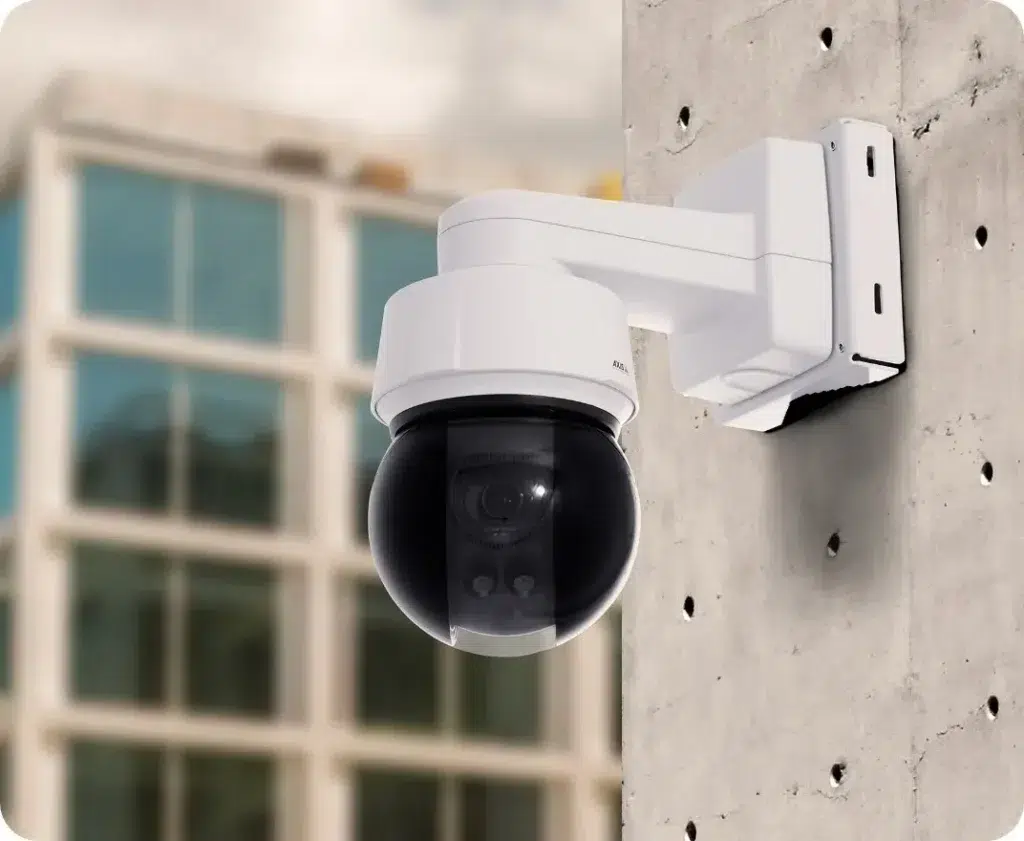

TrueLook 4K IR PTZ Camera — Best for Active Monitoring
The 4K IR PTZ Camera combines TrueLook’s highest live-view resolution with 31× optical zoom and full remote control. At 3840 × 2160 with a focal range of 6.9 – 214.6mm, operators can observe activity across an entire site or zoom to read a worker’s badge at 100 meters.
Its panoramic time-lapse mode is a distinctive feature: the camera sweeps through a programmed arc and stitches captures into panoramic images of up to 100 megapixels — a documentation capability no fixed camera can match.
Best for: Large commercial sites, active safety compliance programs, projects requiring both time-lapse documentation and live remote monitoring.
Key specs:
- 3840 × 2160 (4K) resolution
- 31× optical zoom
- Focal length: 6.9 – 214.6mm
- 360° pan
- Panoramic time-lapse (up to 100 megapixels)
- Live streaming: H.264, H.265, MJPEG
- IP68 + IK10 + NEMA 4X
- Built-in infrared
Standout capability: The 100-megapixel panoramic time-lapse mode is unmatched in its category. A single 4K IR PTZ Camera can produce both real-time security monitoring and cinema-quality documentation from one mounting point.
Interior Cameras
TrueLook Interior Multi-Camera System
Interior construction like commercial fit-outs or hospital renovations present different challenges than exterior monitoring. TrueLook’s Interior Multi-Camera system addresses this with one user-controlled 1080p PTZ camera paired with three 5MP fixed cameras, delivering simultaneous 360° coverage of interior spaces.
Best for: Interior renovations, occupied-building construction, hospitals, and other interior environments where exterior-rated cameras aren’t necessary.
Key specs:
- 1 × 1080p PTZ (user-controlled)
- 3 × 5MP fixed cameras (positioned for 360° coverage)
- Mounting: ceiling, wall, pole, pendant, or tripod (5–9ft extensible)
- Interior use only
Mobile Surveillance Trailers
TrueLook Mobile Surveillance Trailer — Best for Remote and Temporary Sites
Not every construction site has electrical infrastructure or a fixed mounting point. TrueLook’s Mobile Surveillance Trailers are self-contained units that deploy in minutes, require no external power, and connect via 4G LTE cellular.
Best for: Remote site security, phase-based projects that shift location, land development, utility infrastructure, and any site where installing fixed cameras is impractical.
Key specs:
- Telescoping mast: 15–30 feet (varies by configuration)
- Solar panels: 800W total power (four 200W panels)
- Battery backup for continuous overnight operation
- Built-in 4G LTE cellular modem
- Compatible with all TrueLook exterior cameras (fixed or PTZ)
- Plug-and-play single-person deployment
- Available for lease or purchase
Why it matters: A mobile trailer equipped with a 4K IR PTZ Camera provides enterprise-grade security and documentation capability at a site with zero infrastructure — no power, no network, no permanent structures required.
TrueLook Platform Features
Every TrueLook camera runs on the same cloud platform, regardless of model. Key features across the lineup:
| Feature | Details |
| Live streaming | Accessible from any device, anywhere |
| Time-lapse | Custom intervals, automated compilation |
| Intelligent Security | AI-powered motion detection and alerts |
| TrueAI | Visual data interpretation for site analytics |
| Integrations* | Direct sync with project management workflows, including Procore and Autodesk |
| Cloud storage | Unlimited on Premium plans; tiered on others |
*available on advanced and premium plans
Choosing the Right TrueLook Camera
| Your Situation | Recommended Camera |
| Small residential build | 2K IR Fixed |
| Multi-angle coverage needed | Multiple 2K IR Fixed units |
| Standard commercial project | 4K IR Fixed |
| High-profile / landmark project | 8K IR Fixed |
| Need active remote monitoring | 4K IR PTZ |
| Interior renovation or fit-out | Interior Multi-Camera |
| Remote or off-grid site | Mobile Surveillance Trailer |
| Large site, mixed needs | 4K IR Fixed + 4K IR PTZ combination |
Subscription & Project Pricing
TrueLook offers a powerful, cloud-based platform for project monitoring, time-lapse production, and site security. To keep your costs transparent, our pricing is divided into three clear categories: Monthly Software, One-Time Hardware, and Optional Add-Ons.
1. Software Subscription Plans
Your monthly subscription covers your cloud-based project management tools, time-lapse processing, and unlimited user access.
| Plan Level | Software Subscription (Starting At) | Best For |
| Essentials | ~$99/month* | Basic site monitoring and time-lapse creation |
| Advanced | ~$129/month | Enhanced security alerts and extended storage |
| Premium | ~$400–$600/month | High-activity sites and 24/7 AI-driven recording |
*Reflects software access only. Prepayment options available.
2. Hardware & Installation (Sold Separately)
Since every jobsite has unique power and connectivity needs, hardware is quoted as a separate, one-time project cost:
- High-End Hardware: 4K PTZ, Fixed, or Solar-powered camera kits.
- Professional Installation: Expert setup and configuration by certified technicians.
- Maintenance: On-site hardware servicing to guarantee 100% uptime.
3. Custom Add-Ons (Optional)
Improve your project security and data management with specialized services tailored to your site:
- Professional Monitoring: Turn your cameras into a live security force. Our monitoring center professionals review alerts in real-time to dispatch authorities and deter intruders.
- Enhanced AI Analytics: Advanced object detection and data reporting for safety compliance.
- Extended Storage: Increase your cloud archives for long-term project documentation.
Looking for a complete setup? Contact TrueLook directly for a custom quote that includes cameras, professional installation, and multi-camera project scaling.
No one makes construction cameras as hassle-free.
Contact us for a free, no obligation quote today!
Frequently Asked Questions
TrueLook’s exterior cameras are rated IP68 (continuous submersion), IK10 (maximum vandal resistance), and NEMA 4X (corrosion resistance). This exceeds the IP66/IP67 standard common in the wider security camera market.
Yes. All TrueLook exterior cameras support solar power with battery backup. The Mobile Surveillance Trailer includes up to 800W of solar and a battery system designed for continuous overnight operation.
Yes. TrueLook integrates directly with tools such as Procore and Autodesk Construction Cloud for BIM documentation and project management workflows. Our cameras can directly export photos and time-lapses to both platforms.
For standard projects, the 4K IR Fixed Camera produces high-resolution time-lapse documentation. For high-profile projects or marketing deliverables, the 8K IR Fixed Camera produces cinema-grade imagery. The 4K IR PTZ Camera adds panoramic time-lapse capability up to 100 megapixels.
Cloud retention varies by plan. TrueLook offers a minimum of 30 days of rolling storage for active construction projects, but 60+ days is advisable for projects with active disputes or contractual documentation requirements.
Last reviewed: March 2026. Pricing reflects published TrueLook rates and may vary. Contact TrueLook for current project-specific quotes.
